I have central air-conditioning in my apartment, and it’s controlled by a remote, employing IR signals to send commands to the A/C control unit.

As any decent geek would, I’d like to be able to control my A/C using other means (e.g., a smartphone).

In a previous post, I went into detail about reverse engineering the remote. Now it’s time to proceed to actually using these powers to replace the original A/C remote with my own Arduino-controlled thingie!

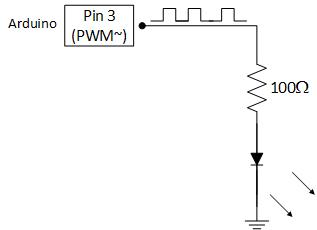

The gist: using an Arduino Uno board with a IR-LED circuit (see below), along with Ken Shirriff’s Arduino IRremote library (slightly modified), I was able to transmit the A/C commands that were analyzed in the previous post in lieu of the original remote.

Keep reading for a full drill down, or jump straight into my home-control-arduino GitHub project for the actual code and documentation.

I have central air-conditioning in my apartment, and it’s controlled by a remote, employing IR signals to send commands to the A/C control unit.

As any decent geek would, I’d like to be able to control my A/C using other means (e.g., a smartphone).

Towards that goal, I figured I should first reverse engineer the IR commands the remote sends to the A/C, so I could later send these commands using other methods.

The gist: using an Arduino Uno board with a Phototransistor circuit (see below), I was able to obtain the IR waveform using Ken Shirriff’s Arduino IRremote library (slightly modified), and even graph these waveforms with Python’s matplotlib, as shown below.

Keep reading for a full drill down, or jump straight into my home-control-arduino GitHub project for the actual code and documentation.
